Comparing fan static pressure, method

Discussion in 'Tech Talk' started by Ryld Baenre, Jul 4, 2012.

  1. Ryld Baenre
    Veteran FPS Member

    Joined:
    Nov 29, 2008
    Messages:
    1,487
    Likes Received:
    3
    Gender:
    Male
    Location:
    Ontario, Canada

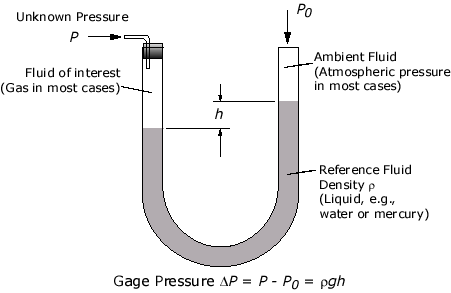

    So I picked up some ridiculous fans and they claim to be 215 cfm + 5.3mm H2O (i think), 61 dba @ 3000 rpm. Crazy loud and wouldn't ever likely run that high but for fun I wanted to test them against the fans already in the case. So I'm thinking I could do something like the following diagram and I would just need to find a way to direct the air from the fan into the tube. I would be doing this with water. I'll suspend the tubing between 2 parallel wood dowels with clips and use a smaller diameter tubing.

    Thoughts?

    [​IMG]
